MICROVERSE DCS

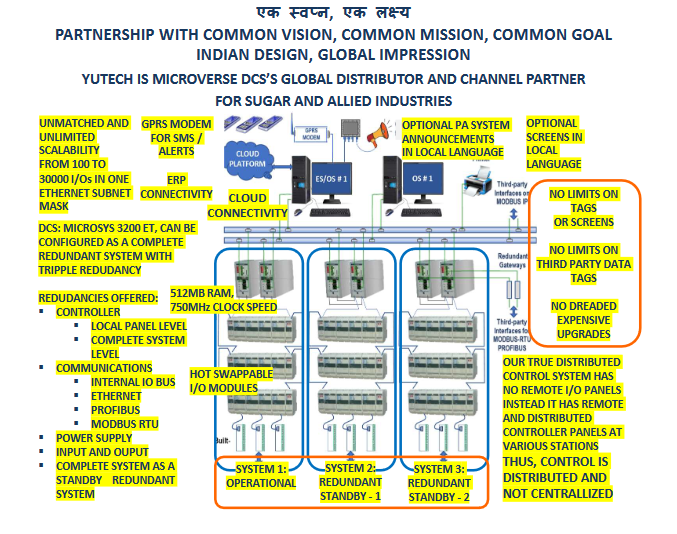

YUTECH MICROVERSE DCS

Microsys 3200 Et System Key Features

UNMATCHED MEMORY - 512MB EXPANDABLE TO 4GB.
BEST CLOCK TIME - 720MHz AND BEST SCAN TIME: 100mSEC.
BUMPLESS, BALANCE-LESS, AND GLITCH-FREE REDUNDANCY.
UNLIMITED TAGS.
INEXPENSIVE UPGRADES.
BUILT-IN CLOUD CONNECTIVITY.
BUILT-IN INDUSTRIAL INTERNET OF THINGS (IIOT) CONNECTIVITY.
- BUILT-IN APIs FOR INTEGRATION WITH CLOUD PLATFORMS, MOBILE APPS TO MAKE DATA ACCESSIBLE ON CUSTOM-BUILT MOBILE PLATFORMS AND WEB-DASHBOARDS.
BUILT-IN ERP CONNECTIVITY.
A HIGHLY FLEXIBLE AND SCALABLE SYSTEM ALLOWS CONFIGURATIONS LOWER THAN 100 I/OS TO OVER 16,000 I/OS WHICH CAN BE EXTENDED EVEN TO 24000 I/Os PER SUBNET MASK. MEANING A NEW NETWORK EXPANDS YOUR I/Os BY 16000 - 24000. THUS, THERE IS NO TOP LIMIT ON I/Os.
SERVER-LESS BASIC CONFIGURATION WITH MULTI-MASTER, MULTI-SLAVE TOPOLOGY.
MEAN TIME BETWEEN FAILURES (MTBF): 12,07,420 HRS.
MEAN TIME TO REPAIR (MTTR): LESS THAN 30 MINUTES (>1/2 HR), TO REPLACE HOT-SWAPPABLE MODULE.
SYSTEM AVAILABILITY: 0.999999, THAT' S BETTER THAN 99.9999%.

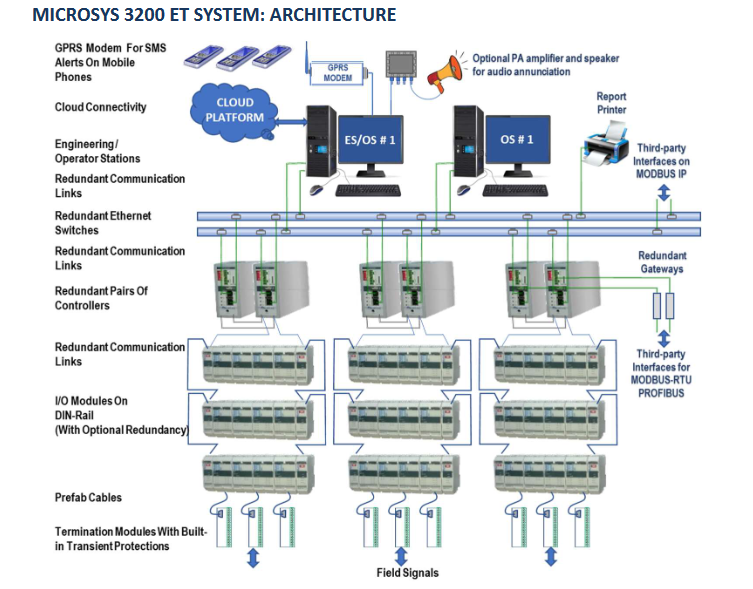

AUTOMATIC, BUMP-LESS, BALANCE-LESS, AND GLITCH-FREE REDUNDANCIES AT ALL LEVELS AS BELOW:
- CONTROLLERS.
- I/O MODULES.
- COMMUNICATION BUSES BETWEEN CONTROLLERS AND I/O MODULES.
- COMMUNICATION BUSES BETWEEN CONTROLLERS, AND ENGINEERING / OPERATOR STATIONS.
- POWER SUPPLIES.
DIAGNOSTIC INFORMATION ABOUT EVERY SYSTEM ELEMENT IS AVAILABLE ON ENGINEERING AND OPERATOR STATIONS.
HOT-SWAPPABLE SYSTEM ELEMENTS ARE HOT-REMOVABLE / HOT-INSERTABLE.
FACILITY FOR SD CARD.
IO SUB-SYSTEM REDUNDANT COMMUNICATION PORTS: 2.
TWO 100MBPS REDUNDANT ETHERNET PORTS FOR ENGINEERING AND OPERATOR STATIONS.
TWO RS 232 SERIAL PORTS.
USB 2.0 PORT: 1 FOR INTERFACING THIRD-PARTY COMMUNICATION DEVICES.
I/Os PER CONTROLLER: 512 OR 32 MODULES. THIS FEATURE MAINTAINS BEST-IN-CLASS SCAN TIME.
BUILT-IN DRIVERS FOR MODBUS-IP AND MODBUS-RTU AND FOR AUDIO PORT (1 NO.).
POWERFUL DIAGNOSTICS.
24 VDC POWER SUPPLY.

MICROSYS 3200 ET SYSTEM: MODULES

GENERAL SPECIFICATIONS:

CHANNEL-TO-CHANNEL ISOLATION FOR ANALOG MODULES.
GROUP ISOLATION DIGITAL MODULES.
ALL MODULES COME WITH STATUS INDICATION LEDS FOR INDIVIDUAL CHANNELS.
ALL I/O MODULES AND BUS INTERFACE MODULES ARE DIN-RAIL MOUNTED AND STACKED TOGETHER.
CONTROLLERS ARE DIN-RAIL MOUNTED.
ALL I/OS AND INTERFACE MODULES ARE HOT-SWAPPABLE.

BUS CONNECTOR: T-BUS

BUS CONNECTOR BACK-PLANE TO INSTALL HOT-SWAPPABLE MODULES.

ANALOG INPUT MODULES: ET-AI-2-8, ET-AI-2-16

8-CHANNEL AND 16-CHANNEL 16-BIT RESOLUTION ANALOG INPUT MODULE.
ELECTRONIC CURRENT-LIMITING TO 30 MA.

DIGITAL INPUT MODULES: ET-DI-2-8, ET-DI-2-16

8-CHANNEL AND 16-CHANNEL DIGITAL INPUT MODULE.

ANALOG OUTPUT MODULES: ET-A0-2-4, ET-A0-2-8

4-CHANNEL AND 8-CHANNEL 16-BIT RESOLUTION ANALOG OUTPUT MODULE.

DIGITAL OUTPUT MODULES: ET-DO-2-8, ET-DO-2-16

8-CHANNEL AND 16-CHANNEL DIGITAL OUTPUT MODULE.
300 MA OUTPUT CURRENT PER CHANNEL WITH BUILT-IN SHORT-CIRCUIT PROTECTION.

PULSE INPUT MODULES: ET-PI-2-8

8-CHANNEL PULSE INPUT MODULE.
PULSE FREQUENCY MEASUREMENT UP TO 10 KHZ.

SER INPUT MODULES: ET-SE-2-15 (SER IS SEQUENTIAL EVENT REGISTER ALSO CALLED SOE / SOER MEANING SEQUENCE OF EVENTS REGISTER)

15-CHANNEL SER MODULE.
EVENT RESOLUTION: 1 MILLI-SECOND.
ACQUIRED CHANNELS CAN BE INTEGRATED INTO A SYSTEM OPERATING LOGIC.

BUS INTERFACE MODULES: ET-BIM-1, ET-BIM-2

REDUNDANT COMMUNICATION INTERFACE BETWEEN I/O MODULES AND CONTROLLERS.
24 VDC POWER TO I/O MODULES.
PREFAB CABLES.

MICROSYS 3200 ET SYSTEM: SOFTWARE TOOLS

MICROSYS 3200 ET SYSTEM: SOFTWARE TOOLS SYSDEV - FUNCTIONAL BLOCK DIAGRAMS (FBD) APPLICATION LOGIC DEVELOPMENT TOOL:

A LIBRARY OF OVER 100 FUNCTION BLOCKS.
USER-DEFINED FUNCTION BLOCKS FOR REPETITIVE FUNCTIONS OR PROPRIETARY LOGICS.
ONLINE OR OFFLINE LOGIC SIMULATION.
ANY MODIFICATIONS IN LOGIC CAN BE DOWNLOADED FROM THE ENGINEERING STATION IN A RUNNING PLANT WITHOUT NECESSITATING A SHUTDOWN AND WITHOUT RESULTING IN ANY PROCESS UPSETS.
BEING TRUE DCS, ALL THE CONTROLLERS SHARE A GLOBAL DATABASE RESULTING IN A SINGLE HOMOGENOUS SYSTEM WITH GEOGRAPHICALLY SPREAD MULTIPLE CONTROLLERS.
BUILT-IN DRIVERS FOR MODBUS FOR EASY INTEGRATION OF MULTIPLE THIRD-PARTY PRODUCTS OVER MULTIPLE GATEWAYS.

PSCOPE 22 - GRAPHICS USER INTERFACE:

GRAPHICS USER INTERFACE FOR VISUALIZATION OF PROCESS, TRENDS, ALARM LOGGING, EVENT LOGGING, OPERATOR TRACKING, AND OPERATOR GUIDANCE MESSAGES.
9 LEVELS OF ACCESS CONTROL.
EACH ES / OS CAN ACT AS A HISTORIAN, ELIMINATING THE NEED FOR A SEPARATE HISTORIAN.

BATCH MANAGEMENT TOOLS:

EASILY DEVELOPING HUNDREDS OF RECIPES ON THE FLY.
GENERIC RECIPES CAN BE SIMULTANEOUSLY CARRIED OUT WITH MULTIPLE EQUIPMENT.
MANUAL, SEMI-MANUAL, AND AUTOMATIC STEPS CAN BE ADDED TO THE RECIPES OR RECIPES CAN BE EXPANDED FROM PRE-CONFIGURED TEMPLATES.
DETAILED BATCH REPORTS OFFER FULL ACCOUNTABILITY AND VISIBILITY FOR EVERY BATCH.
