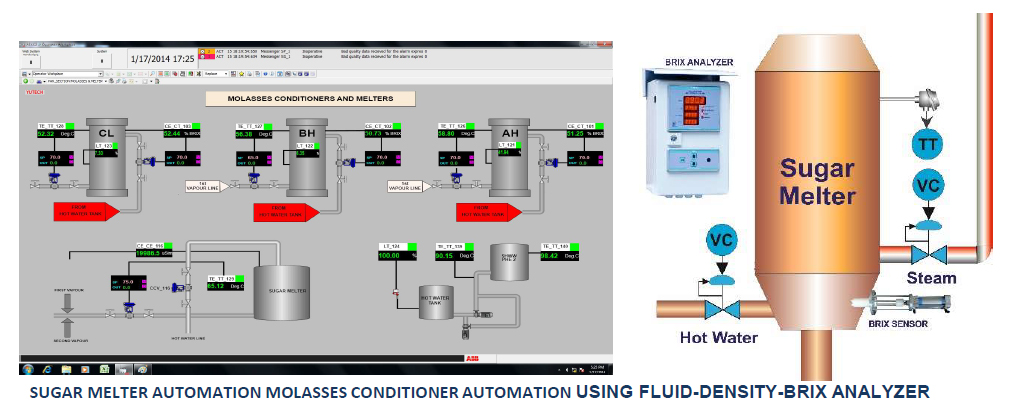

SUGAR MELTER AUTOMATION WITH BRIX ANALYZER AND DENSITY BRIX SENSOR
Sugar Melter Automation Advantages:
- Streamlined Process Due To Constant And Maintained Outlet Brix And Temperature.
- Ensure Constant Quality Of Molasses Feed To Pans.
- Reduce Heat Waste, Due To Overheating Or Under Dilution Or Over Steaming.
- Reduce Process Time By Avoiding Extra Dilution
- Thus Save Time, Steam, And Water And Ensure More Throughput In Less Time.
- Increase Profitability
Control Loops:
- Controlled Intake Of Heating Media (Steam), And Diluting Media (Water) As Per Process Dynamics Like Brix And Temperature Of The Raw Or Recycled Sugar Intake.
Brix Control using Brix or Fluid-Density-Brix
Analyzer:
- Brix Of Sugar Melt Are Maintained By The Controlled Addition Of Hot Water To Molasses Using A Hot Water Control Valve In A Pid Loop. Value Of Sugar Melt’S Fluiddensity- Brix / Brix Sensed By A Fluid-Density-Brix Analyzer Or High-Frequency Brix Analyzer Is Used As The Process Variable For This Pid Action..
Temperature Control:
- Sugar Melt Temperature Is Maintained Constant By Controlled Application Of Steam Using A Control Valve In A Pid Loop Using Melt Temperature Value As The Process Variable For Pid Action.

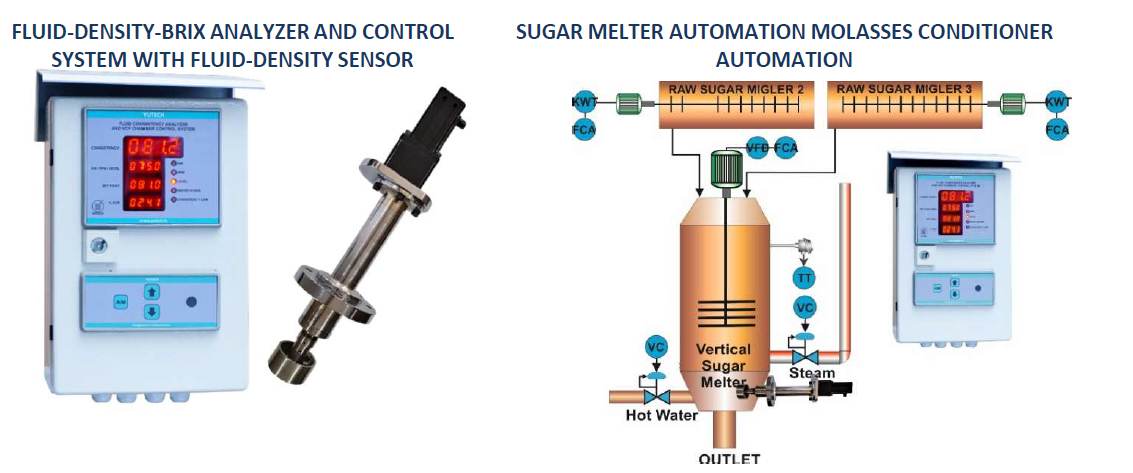

Fluid Density Brix Analyzer Technical Specifications:
Product Code: A15FDACFM1230 / A24FDACFMEM1230
- Power Supply: 85 - 265 VAC, 50 - 60HZ
-
Inputs:
- Fluid-Density Sensor
- RTD PT100 Temperature Sensor
- 8-Point Level Sensors (Conductivity-Based Digital Switch Type)
- 4-20MA: Input From Vacuum Transmitter (Optional, Not A Part Of Standard Supply)
- 4-20Ma: Input From Differential Pressure Transmitter With Extended Diaphragm With Capillary Tubes (Optional, Not A Part Of Standard Supply)
-
Outputs:
- 4-20Ma: Brix Output
- 4-20MA: PID Output For Brix Control (Brix As Pv For Pid Control)
- 2 Potential-Free Relay Outputs
-
Display:
- For Product Code - A15FDACFM1230: 7-SEGMENT LED DISPLAY
- For Product Code - A24FDACFMEM1230: 7-SEGMENT LED DISPLAY AND LCD DISPLAY
- Enclosure: Field Mounted Ms Powder Coated, Ingress Protection Class Ip67
-
Communication:
- Ethernet: Modbus Tcpip (Product Code: A24FDACFMEM1230)
Fluid Density Sensor Technical Specifications:
Product Code: A24FDSRS1, A24FDSRS2, A24FDSRS3
- Type: Motorized Fluid Density Sensor
- Power Supply: 24VDC From The Analyzer (Not To Be Connected To Any External Source).
-
Built-In Thermowell With RTD PT100
- Material Of Construction: SS304 / SS316L With Ptfe Sheath
- PTFE Sheathed Conductivity Probe 8 Nos.: SS304 / SS316L With PTFE Sheath
-
Material Of Construction:
- Wetted Rotary Parts: SS304 / SS316L
- Wetted Stationary Parts: MS Chrome Plated / SS304 / SS316L
- For Food-Grade, SS-304 Full Sensor Body: Add FGSS To The PC. Ex: A24FDSRS3FGSS
- For Acidic Chemicals, SS-316L Full Sensor Body: Add SSL To The Pc. Ex: A24FDSRS3SSL
Fluid Density Sensor Model Guidance For Various Applications:
A24FDSRS1: Batch Pan, Horizontal Continuous Pan, Vertical Continuous Pan
A24FDSRS2: Evaporator, Falling Film Evaporator, Juice And Syrup Mixing Vessel
A24FDSRS3: Sugar Melt, Molasses Conditioner, Lime Baume
A24FDSRS3FGSS: Breweries, Food & Beverages, Dairy
A24FDSRS3FGSSL: Chemicals, Distillery Slope / Spentwash
