YUTECH BRIX ANALYZER AND FLUID DENSITY BRIX SENSOR
Sugar Process, Refinery, And Distillery Applications: Senses Brix And Density In Kg/M3
DENSITY BRIX SENSOR FOR MEASURING BRIX OF MOLASSES, MASSECUITE, SYRUP
Application In Sugar Industries For Brix Measurement And Automation Of:
- Batch Type Vacuum Pan (A, B, C, And Graining Pans)
- Continuous Vacuum Pan
- Vertical Continuous Pan
- Roberts / Semi-Kestner Evaporator
- Falling Film Evaporators
- Sugar Melter Automation
- Molasses Conditioner Juice And Syrup Mixer
- Baume Of Milk Of Lime
Applications In Distilleries
- Brix Of Slope Or Spent Wash
- Brix Of Molasses
- Brix Or Wort Of Fermentation Tanks

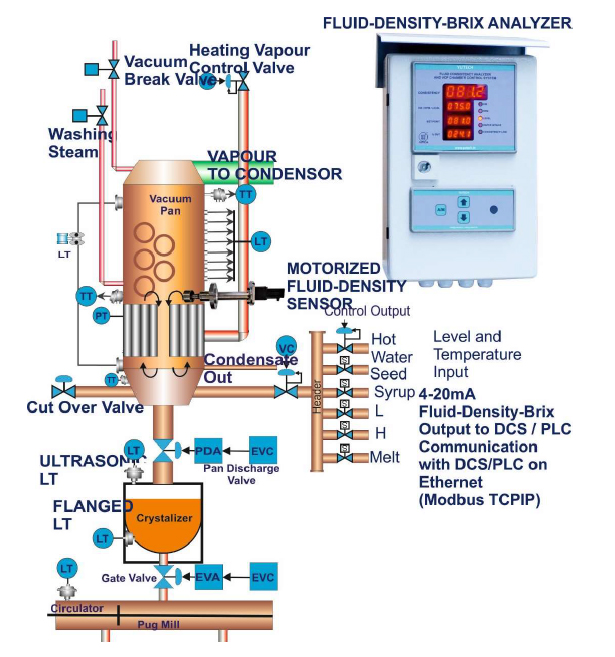

Brix Analyzer And Density Brix Sensor A24Fdsrs1 For Batch Pan Automation (Batch Pan With Stirrer):
Yutech Batch Pan Automation For A, B, C, And Graining Pans Without Stirrer Or Mechanical Circulator:
- Accurate Pan Brix Sensing Using Fluid Density Brix Sensor A24FDSRS1
- Guaranteed Increased Profits In Terms Of More Sugar Production At Lower Cost
- Increased Pan Strikes Per Day
- No False Grains, Hence Less Water And Steam Consumption Thus Increased Bagasse Saving
- Increased Sugar Production
Yutech Batch Pan Automation For A, B, C, And Graining Pans Without Stirrer Or Mechanical Circulator:
- Accurate Pan Brix Sensing Using Fluid Density Brix Sensor A24FDSRS1
- Guaranteed Increased Profits In Terms Of More Sugar Production At Lower Cost
- Increased Pan Strikes Per Day
- No False Grains, Hence Less Water And Steam Consumption Thus Increased Bagasse Saving
- Increased Sugar Production
Salient Features Of Fluid-Density-Brix Analyzer System:
- Fluid-Density Type Brix Analyzer System Targets Sensing The Fluid-Density Of Liquids, Slurries, Or Syrups Like Sugar Massecuite, Sugar Syrup, Sugar Melt, Liquors, And Molasses.
- The Motorized Fluid-Density Sensor Is Specially Designed To Be Inserted In A Vessel To Stir The Fluid Media And Measure Its Fluid-Density Which Can Be Expressed In Simple Terms As The Tightness Or Thinness Of A Fluid Media. It Can Also Be Informally Referred To As The Consistency Of The Fluid And Is A Mechanical Property Of A Fluid.
- Motorized Sensor’S Torque And Power Which Is Required To Stir The Fluid Varies With Varying Fluid-Density. So The Motorized Fluid-Density Sensor’S Power Consumption Is Directly Proportional To The Fluid’S Density.
- The Variation In Sensor'S Power Consumption Is Sensed By The Fluid-Density Type Brix Analyzer'S Highly Accurate Sensing Circuitry, This Value Is Measured And Processed In The Fluid-Density-Brix Equation, To Derive The Actual Value Of Density In Kg/M3 And Temperature, Level And Vacuum Compensated Brix Value.
- Compensated Brix Value Is Displayed Or Transmitted As 4-20Ma Current Output.
- Easy And User-Friendly Calibration And Online Compensation.
Fluid Density Brix Analyzer Technical Specifications:
Product Code: A15FDACFM1230 / A24FDACFMEM1230
- Power Supply: 85 - 265 Vac, 50 - 60Hz
-
INPUTS:
- Fluid-Density Sensor
- RTD PT100 Temperature Sensor
- 8-POINT Level Sensors (Conductivity-Based Digital Switch Type)
- 4-20MA: Input From Differential Pressure Transmitter With Extended Diaphragm With Capillary Tubes (Optional, Not A Part Of Standard Supply)
-
OUTPUTS:
- Transmission Outputs: 4-20Ma, Brix Output, And 4-20Ma, Level Output (Required For Batch Pan Application)
- Pid Control Output: 4-20Ma For Brix Control
- 2 Potential-Free Relay Outputs
-
DISPLAY:
- For Product Code - A15FDACFM1230: 7-SEGMENT LED Display
- For Product Code - A15FDACFM1230: 7-Segment LED Display
- Enclosure: Field Mounted Ms Powder Coated, Ingress Protection Class IP67
-
COMMUNICATION:
- Ethernet: Modbus TCPIP (Product Code: A24FDACFMEM1230)
Fluid Density Sensor Technical Specifications:
Product Code: A24FDSRS1, A24FDSRS2, A24FDSRS3
- Type: Motorized Fluid Density Sensor
- Power Supply: 24Vdc From The Analyzer (Not To Be Connected To Any External Source).
-
Built-In Thermowell With RTD PT100
- Material Of Construction: SS304 / SS316L
-
PTFE SHEATHED CONDUCTIVITY PROBE 8 NOS.: SS304 / SS316L WITH PTFE SHEATH
- Material Of Construction:
-
Material Of Construction:
- Wetted Rotary Parts: SS304 / SS316L
- Wetted Stationary Parts: MS Chrome Plated / SS304 / SS316L
- For Food-Grade, SS-304 Full Sensor Body: Add Fgss To The Pc. Ex: A24FDSRS3FGSS
- For Acidic Chemicals, SS-316L Full Sensor Body: Add SSL To The Pc. Ex: A24FDSRS3SSL
Fluid Density Sensor Model Guidance For Various Applications:
- A24FDSRS1: Batch Pan, Vertical Continuous Pan
- A24FDSRS2: Horizontal Continuous Pan
- A24FDSRS3: Evaporator, Falling Film Evaporator, Juice And Syrup Mixing Vessel, Sugar
- Melt, Molasses Conditioner, Lime Baume
- A24FDSRS3FGSS: Breweries, Food & Beverages, Dairy
- A24FDSRS3FGSSL: Chemicals, Distillery Slope / Spentwash
- A24FDSL: Switching Level Sensor
