YUTECH INFRA RED LEVEL
SENSING AND TRANSMISSION SYSTEM
FOR BOILER BAGASSE SILO

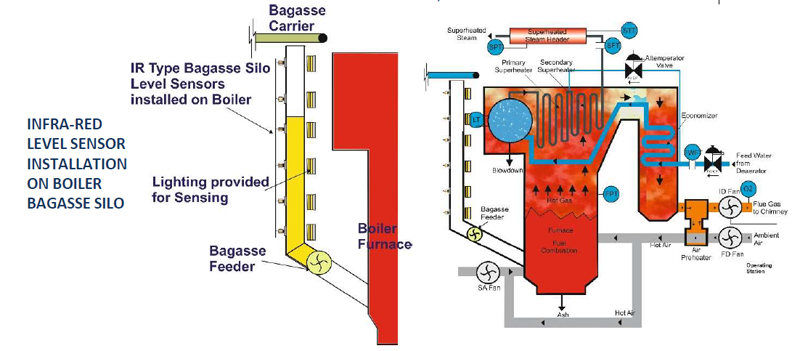

YUTECH INFRA RED LEVEL SENSORS:
- YUTECH invented this Technique in 1986.
- 100% True Donnelly Chute Level Detection.
- No False Indications due to Bagasse Powder.
- No False Indications due to Cane Pieces.
- No False Indications due to Juice Mist, Water Mist, Sticky Juice Residues, Juice Films and Dirt, Bagasse Powder & Juice Mix formed on the Donnelly Chute Walls.
- True Chute Level Detection leads to Excellent Control.
- Water Ingress and Dirt Proof.
- YUTECH IR Sensors have Built-in Raining Bagasse Compensation and easily Sense Level through Raining Bagasse and Juice Moisture.
- Infra Red Light known for Deep Penetration and used in Military Applications for Night Vision, Medical Applications like Deep Fomentation hence the choice of IR for this Critical Application.
- 500+ Sugar Mills use YUTECH IR Sensors in India, Asia Pacific and African Regions.
- ASDDCLIRS10: Use for Level Sensing before Maceration Water is applied.
- ASDDCLIRS12: Use for Level Sensing after Maceration Water is applied. It is the High Temperature variant which can withstand Operating Temperatures up to 100-degree C.
Product Codes for various Sensor
Combinations are as below:
- A15DCAACIR4C1R4FM (4 Level System)
- A15DCAACIR6C1R6FM (6 Level System)
- A15DCAACIR8C1R8FM (8 Level System)
- A15DCAACIR10C1R10FM (10 Level System)
- A15DCAACIR12C1R12FM (12 Level System)
- A15DCAACIR16C1R16FM (16 Level System)
Innovative Features for Ease of Operation and to save
on Installation Cost and Materials:
- Built-in Raining Bagasse Compensation: to Accurately Sense, Analyze, Calculate and Derive Accurate Chute Level within a very challenging environment of Residual Juice Dirt, Sticky Bagasse Dust and Vibration.
- Built-in Controller (Optional): Highly Accurate Fuzzy Logic Controller developed especially for Carrier and Mill Speed Control Applications.
-
Built-in 3-Point Auto/Manual Station to Select Control Output from
(Optional):
- Selector Switch for Local PID Output or DCS/PLC PID Output
- Manual Output for Trouble Shooting
- This feature simplifies installation by eliminating need for installing a Junction Box and Extra wiring.
TECHNICAL SPECIFICATIONS:
- Power Supply:85 - 265 VAC, 50 - 60Hz.
- Analyzer Enclosure: IP67 Field Mounted Dust and Moisture Proof.
- Input: IR Sensor Signals
-
Calibration can be done from :
- Keyboard: Keyboard with 5 Keys is provided in the Analyzer.
- USB Port: for Windows / Android based YUTECH-AccessApp.
- Display: 4 Digit LED Dual Display, LED.
-
Signal Output:
- 4 - 20 mA Processed Measured or Analyzed Variable Output
-
4 - 20 mA Controller Output (Optional)
-
This Output can be Configured as below:
- PID Output
- Scaled Output
- PID / Scaled Output can be selected by C2P or C2S in the Product Code.
-
This Output can be Configured as below:
- Potential-Free Relay Output for each Sensor Input
-
Ethernet Communication Protocol: Modbus-TCPIP
- Modbus TCPIP Communication can be selected by adding suffix EM to the Product Code this is available only in the Controller Model.
