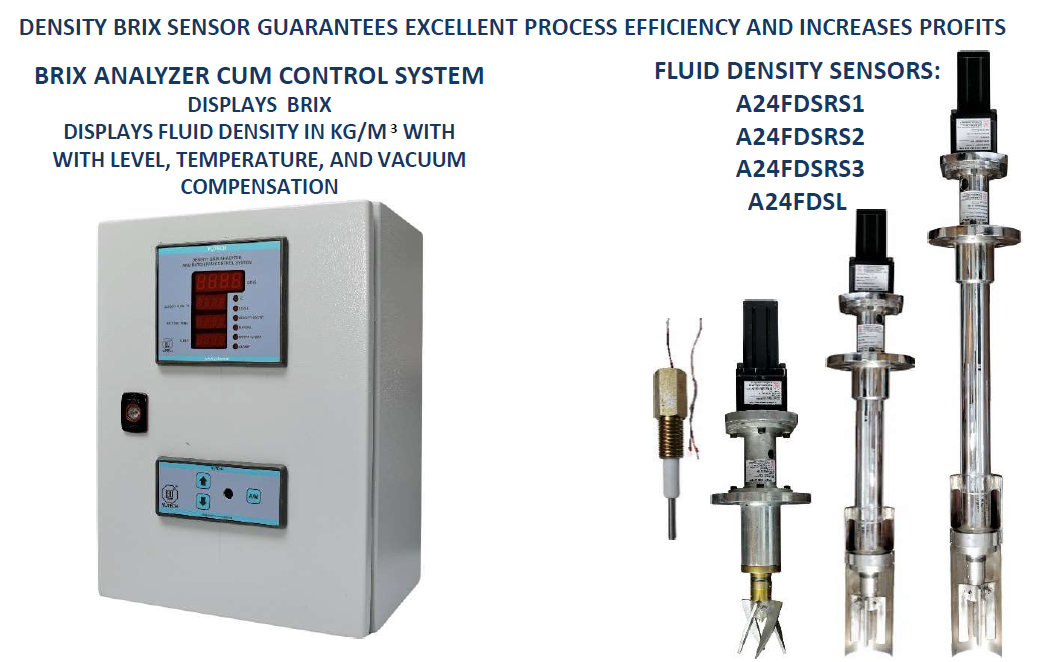

YUTECH FLUID-DENSITY-BRIX ANALYZER CUM CONTROL SYSTEM AND MOTORIZED FLUID-DENSITY SENSOR

BASIC SCIENCE BEHIND FLUID-DENSITY-BRIX:

Fluid-Density: the Density of a particular Fluid.
Density: is defined as" Mass per unit volume", which means it is the Mass contained in a fixed volume. It is denoted by "p" which is a Greek Letter called "Rho".
Density can be derived using the formula "p = m/v" where p is the Fuild-Density, m is the Mass and V is Volume. The unit to measure Fluid- Density is kg/m3 (Kilogram per cubic meter).
Brix: the measurement in percentage by weight of sucrose in pure water solution.
Online Direct measurement of Brix in a Process Fluid is difficult, so indirect methods are used.
The most popular ways of measuring Brix are:
- Hygrometric and Refractometric (Lab Methods).
- High-Frequency or Radio-Frequency Conductivity Type Brix Sensing.
- Microwave Type Brix Sensing.
- Fluid-Density Type Brix Sensing.
While Conductivity or Microwave methods are very successful in measuring Brix of "B and C" Massecuite in CVP, Brix of Sugar Melt, and Brix in a Molasses Conditioner unit, they cannot measure Brix of "A" Massecuite as we measure the Fluid's electrical quality which is variable.
Fluid-Density Measurement using a Motorized Stirring Sensor proves very successful as it directly measures the Fluid's mechanical quality of Fluid irrespective of its electrical characteristics. Thus measured Fluid-Density Value is further processed in the Fluid-Density- Brix Equation, to derive Fluid-Density-Brix.

APPLICATION IN SUGAR PROCESS OR SUGAR REFINERY:
For Measuring FLUID-DENSITY-BRIX of Massecuite / Syrup / Melt / Liquor / Magma / Seed in:

Vertical Continuous Vacuum Pan (VCVP or VKT) Chambers.
Batch Type Vacuum Pans and Continuous Vacuum Pans.
Sugar Melters and Molasses Conditioners.
Evaporators.
Open Pans in Khandsaris or Mini Sugar Plants / Jaggery or Muscovado Plants.
Boiling Vessels in Jaggery or Muscovado Production.

FLUID-DENSITY MEASUREMENT APPLICATION IN OTHER PROCESS INDUSTRIES:

FOOD & BEVERAGES: In Vessels or Pans for Monitoring the Consistency of Sauces / Slurries. / Pastes etc.
CHEMICAL / PHARMA: In Thickening / Thinning Vessels or Pans for Monitoring the Consistency of Chemical Slurries / Pastes.
DISTILLERIES: In Fermentation / Maturation Vessels and Spent-Wash Evaporators for Monitoring Brix.
BREWERIES: In Fermentation Vessels for Monitoring Brix Fermentation Vessels, Maturation Tanks.

SALIENT FEATURE:

Fluid-Density Type Brix Analyzer System targets sensing the Fluid-Density of Liquids, Slurries, or Syrups like Sugar Massecuite, Sugar Syrup, Sugar Melt, Liquors, and Molasses.
The Motorized Fluid-Density Sensor is specially designed to be inserted in a vessel to stir the Fluid Media and Measure its Fluid-Density, which can be expressed in simple terms as the Tightness or Thinness of a Fluid Media. It can also be informally referred to as the Consistency of the Fluid and is a Mechanical Property of a Fluid, which in Liquids is directly proportional to its Viscosity.
The Motorized Sensor's torque and power required to stir the Fluid varies with varying Fluid-Density.
Thus, the Motorized Fluid-Density Sensor's Power Consumption is directly proportional to the Fluid' s Density.
The Fluid-Density-Brix Analyzer's highly accurate Sensing Circuitry senses variation in the Motorized Fluid-Density Sensor's Power Consumption. This deviation is further processed to Derive the Raw Fluid-Density Value.
The Raw Fluid-Density Value is Linearized in the YUTECH Fluid-Density-Brix Equation.
The YUTECH Fluid-Density-Brix Equation is a complex Mathematical Algorithm with Built-in Fuzzy Logic that Accurately Analyzes, Calculates, and Derives the Fluid-Density-Brix Value from the Raw Fluid-Density Value.
This derived Fluid-Density-Brix Value is further analyzed and processed to compensate for Massecuite / Syrup Level variation within the Vessel.
Fully Compensated and Accurate Fluid-Density-Brix Value is Displayed and Transmitted for Controls.
Very Easy Calibration and Online Fluid-Density-Brix Compensation Recalibration.
4-20 mA Output, Separate Modbus and Ethernet Communications.
On-line Calibration Software "YUTECH-AccessApp" provides Remote Access to Density-Brix Analyzer for Calibration, Compensation, and Trouble Shooting.

Innovative Features for Ease of Operation and to save on Installation Cost and Materials:

Built-in Fluid-Density-Brix Equation.
Built-in Level Compensation.
Built-in PID Controller with specialized logic built with years of experience in over 200 Sugar Factories:
- Highly Accurate Fuzzy Logic PID Controller developed especially for Process Flow Control Applications.
- Pan Control Logic built especially for Batch type Vacuum Pan Operations.
- VC Pan Chamber Control Logic built especially for Vertical Continuous Pan Operations.
- CVP Pan Chamber Control Logic built especially for Continuous Vacuum Pan Operations.
- Special Control Logic built for Sugar Melter and Molasses Conditioner.
- Remote Set Variable Facility.
Built-in 3-Point Auto/Manual Station to Select Control Output from:
- Selector Switch for Local PID Output or DCS/PLC PID Output.
- Manual Output for Trouble Shooting.
- This feature simplifies installation by eliminating the need for installing a Junction Box and Extra wiring.

TECHNICAL SPECIFICATIONS - ANALYZER CUM CONTROL SYSTEM:

Power Supply: 85 - 265 VAC, 50 - 60Hz.
Analyzer Enclosure: IP67 Field Mounted Dust and Moisture Proof.
Input:
- Fluid-Density Sensor Signal.
- RTD PT 100 Temperature Sensor Signal.
- DPT Level Transmitter Signal.
- VFD RPM Signal (Optional).
- Conductivity 8-Level Sensor Signal.
Calibration:
- From Keyboard.
- USB Port for Windows / Android-based YUTECH-AccessApp-BA.
Display:
- Base Model: 4 Digit LED Dual Display.
- Controller and Controller with Ethernet Model: 4 Digit LED Quad Display.
- Sensor Cleaning and Washing Output: In-Built Potential Free Relay.
Sensor Cleaning Timing Cycle: Adjustable from Keyboard, default 15 Minutes.
Signal Output:
- 4 - 20 mA Temperature Compensated Fluid-Density-Brix Output.
- 4 - 20 mA PID Output (Controller and, Controller with Ethernet Models).
- 2 Potential-Free Relay Outputs for High - Low Alarm.
Communications:
- Ethernet Communication Protocol: Modbus-TCPIP, in Controller with Ethernet Model.
- Modbus RTU, in Controller Model.

MOTORIZED FLUID-DENSITY SENSOR (PRODUCT CODE: ASDMFDS24DCC01):

Motorized Circulator or Stirrer stirs the Fluid whose Fluid Density is to be measured.
Power consumed.
MOC: Wetted parts: Stainless Steel (SS316) / PTFE. Non-wetted parts: SS / MS / Aluminium / PTFE.
MOC: All SS and Food Grade PTFE Construction optional.
MOC: Wash Water Spray Tube: SS.
Solenoid Valve for Automatic Sensor Wash.
Sensor Shaft is sheathed in Leak Proof Mechanism.
Periodic Cleaning by a signal from the Fluid Consistency Brix Analyzer.
24VDC Power Supply.

TEMPERATURE SENSOR:

RTD PT 100 Temperature Sensor with Thermowell constructed out of Solid SS Bar.

LEVEL SENSORS:

DPT with Extended Diaphragm and Capillary Type Sensing (Optional).
8-Level Conductivity Sensing (Standard).
- MOC: Stainless Steel (SS316) / PTFE.

Product Code:

A15FDAACSCTRC1D4R4FM - A15FDA means Fluid-Density Analyzer of A15 Product Family.
A15FDAACSCTRC1D4R4FM - AC Power Supply.
A15FDAACSCTRC1D4R4FM - Analog Inputs and Outputs.
- AI (CSCTR): Fluid-Density Sensor, 8 Step Level and RTD PT100, Optional: 4-20mA from DPT Type LT;
- AO (C1): 1 Ch. 4-20mA (Brix); AO (C2): 2 Ch. 4-20mA (Ch. 1: Brix and Ch. 2: PID).
A15FDAACSCTRC1D4R4FM: Digital Inputs and Outputs.
- DI (D4): 4 DIs (24VDC); DO (R4): 4 Relay Outputs (24VDC, 1A).
A15FDAACSCTRC1D4R4FM - Field Mounted Enclosure.
A15FDAACSCTRC2D4R4FMC - Analyzer with Controller Model.
A15FDAACSCTRC2D4R4FMCEM - Analyzer with Controller and Ethernet Model, EM: Modbus TCP/IP Communication (Ethernet).
