YUTECH HALL'S EFFECT TYPE
DISPLACEMENT SENSING AND
TRANSMISSION SYSTEM
FOR SUGAR MILL ROLLER LIFT AND CANE BLANKET LEVEL
HALL'S EFFECT POSITION SENSOR:

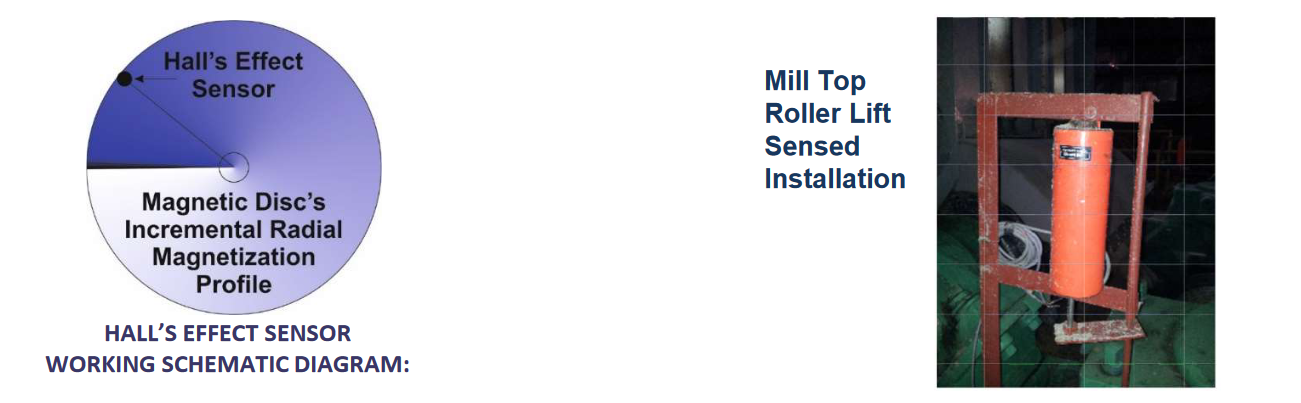

- Hall's Effect Technology is based on the Electromagnetic Principle; this type of Electronic Sensing is essentially Contactless. Where the Sensor's Wiper glides over a Radial Strip of incrementally varying Electro-Magnetism, and this Electro-Magnetism induces the Viper with a Voltage corresponding to its position over the Radial Strip. This induced voltage is the Sensor Output which varies with change in Viper's position.
YUTECH CANE BLANKET LEVEL SENSING SYSTEM:

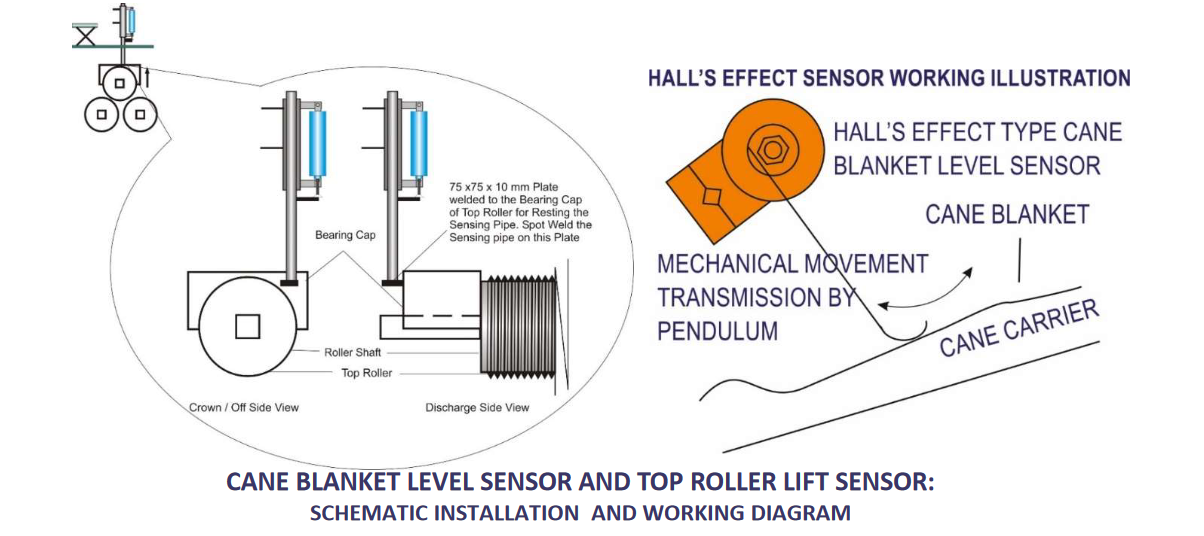

- Cane Level in Carrier is Primarily Sensed by a Pendulum riding on Cane Blanket which Mechanically Transmits the actual Blanket Level or Height to a Contact-less Hall's Effect Sensor.
- 100% True Level Detection through Shocks and Vibrations.
- Extremely Rugged, Heavy Duty, Water-Proof, Ingress Protected Enclosure Protects the Sensor against all external abuse of being hit by Flying Cane pieces, Moisture, Dirt, Juice Mist and Wash Water AND Cane Carrier's Vibrations.
- YUTECH's founder Mr. Arun Dalvi is the originally invented this Technique way back in 1986 and upgraded to Hall's Effect in 2006.
- More than 400 Sugar Mills use YUTECH CBL Sensors and Transmitters in India, Asia Pacific, West Asia and the African Continent.

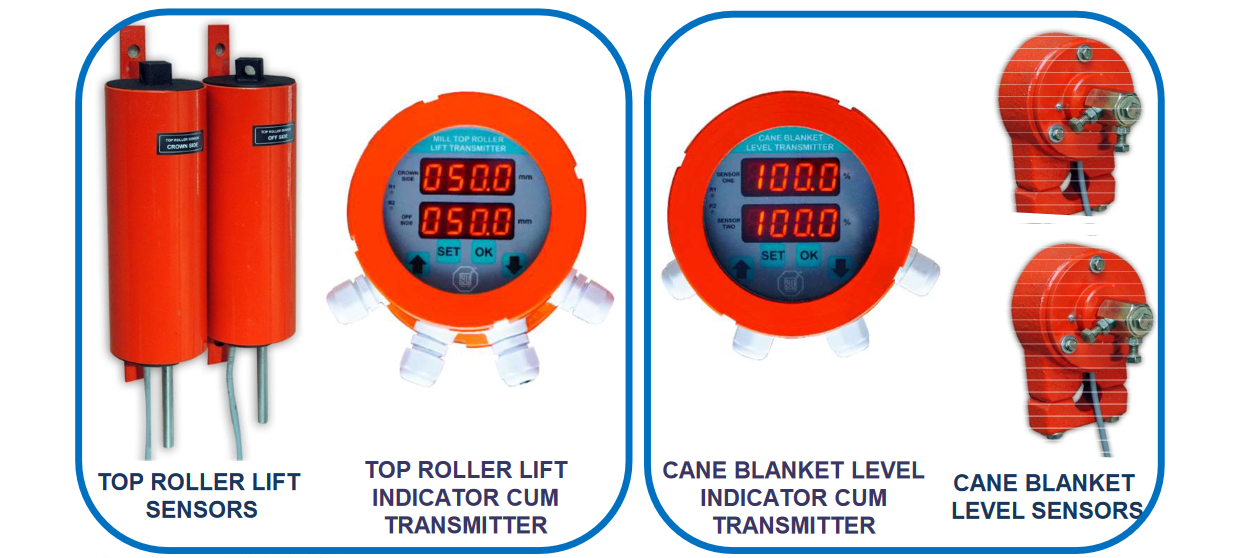

- Specs: 230 VAC Power Supply, Input: CBL Sensor Dual Channel, Output: Dual Channel 4-20mA.

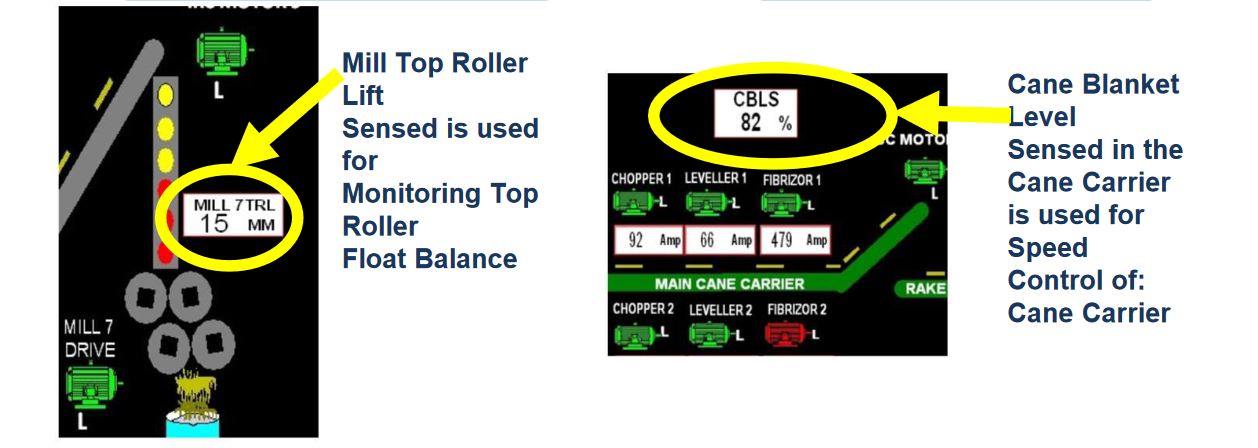

YUTECH TOP ROLLER LIFT SENSING SYSTEM:
- Mill Top Roller Lift is Sensed by a Primary Telescopic Sensor whose Sensing End Rests on Mill Pressure Plate, which Mechanically Transmits the actual Lift to a Contact-less Hall's Effect Sensor.
- In Ultra-Sonic Type Sensor, the Primary Sensor's Mechanical Movement is sensed by an Ultrasonic Sensor, which is then transmitted as Top Roller Lift (4-20mA from Indicator). Ultrasonic Sensing was added in 2019.
- Very Rugged, Heavy Duty, Water-Proof, Ingress Protected Enclosure provides 100% True Lift Detection even during Shocks and
- The Enclosure is very well capable of Protecting the Sensor against all external abuse of being hit by Cleaning Sticks by Workers trying to remove stuck Bagasse and also from Direct Hot Wash Water / Steam Spray during Mill Cleaning / Vibrations generated by Full Load Milling Operation . Needless to say, it also Protects the Sensor against Moisture, Dirt, Juice Mist and Powdered Bagasse Particles.
- YUTECH's founder Mr. Arun Dalvi is the originally invented this Technique way back in 1992 and upgraded to Hall's Effect in 2006,
- Specs: 230 VAC Power Supply, Input: TRL Sensor Dual Channel, Output: Dual Channel 4-20mA.
